STOP w/ Octagon (100-240 VAC) - DOT2929RW-B360DS/100-240VAC(68245)
68245 (DOT2929RW-B360DS/100-240VAC) | 29" H x 29" W x 6.5Price: $3116
Product Description

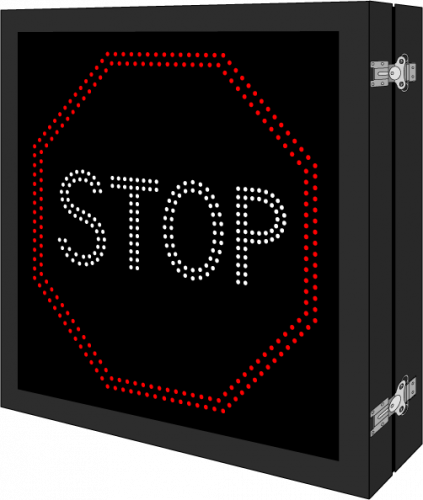

This DOT Series STOP w/ Octogon sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 29.000" x 29.000" x 6.500".
The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.
It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
- Item Details
- Warranty
| Item Number: | 68245 (DOT2929RW-B360DS/100-240VAC) | Product Line: | NUDOT (DOT LED Blank-Out Sign) |
| Dimensions: | 29" H x 29" W x 6.5 | Weight: | 58.393 lbs. |
| Faces: | Single Face | Face Material: | 1/8" Smoked Polycarbonate(5109) |
| Illumination: | TCL LED | LED Viewing Angle: | Narrow Angle LEDs |
| UL/cUL Listed: | Wet Locations | Finish: | Powdercoat Black |
| Power Supplies: | No Redundancy | Cabinet: | DOT Single Face 6.5" |
| Photodimming: | Single Photodimming | Input Voltage: | 100-240 VAC |
| Warranty: | 5 Year Warranty |
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Directional Systems, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
